    “Full Automatic CZ Purlin Roll Forming Machine Quick Size Change PLC Control High Speed Automatic CZ Channel Roll Forming Machine with PLC & Quick

    OEM 1-3mm Steel Sheet 80-300mm Automatic Size Changeable C Purlin Making Machine For Indonesia


    Automatic C purlin roll forming machine popular sell in many countries, common C purlin rolling thickness from 1-3 mm, material use Galvanized steel material


    We sell lots of such Automatic C purlin roll forming machine to Philippines, India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabic, Oman etc, Size can customize can your need size


    Automatic C purlin roll forming machine | 80-300mm automatic size changeable C purlin making machine

    Work flow of Automatic C purlin roll forming machine

    Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table

    roll forming machine work flow

    Diameter of Automatic C purlin roll forming machine

    NO

    Type

    Specification

    1

    Raw materialTypeGalvanized steel
    Feeding widthAs customer' drawing
    Thickness1-3 mm

    2

    DecoilerOperationManual
    Weight apacity3 Tons

    3

    Main bodyRoller station18 rows
    Diameter of shaft75 mm
    Shaft material45# with 0.05mm chrome
    Roller materialGCR 15
    Frame400-H beam
    Frame thickness20 mm
    Machine sizeAbout 9.5*1.5*2 m
    Machine weightAbout 9.5 tons
    Machine colorAs customer need
    OperationHydraulic automatic
    Working speed10-30 m/min hydraulic motor
    4CutterHardness50-65 HRC
    Cutting tolerance± 1mm
    MaterialCr 12
    OperateHydraulic cutting
    5PowerDriving wayChain 2 inch
    Main motor22 KW
    Pump motor for cutter5.5 KW
    Voltage380V/50HZ, 3 phase or ass customer' request

    6

    Control boxElectric boxPLC control system, inventer
    ScreenTouchable screen
    PLC brandDelta made in Taiwan
    Inverter brandDelta made in Taiwan or SAJ
    LanguageChinese and English or as customer' request
    7StackerOperationManual
    Length2-3 m

    Product drawing

    Roll forming machine
    Roll forming machine 1

    Product use

    C&Z purlin

    Feeder decoiler

    3T MANUAL (2)

    It is used to stand the steel coil and uncoil, keep them work stably

    Loading capacity: 3 tons

    Coil inner size: 470-530 mm

    Work type: Manual operation

    Color: As customer' request

    Roll forming machine

    Roller material: 45# steel with 0.05mm chrome

    roller surfaces polish, hard plating dealing

    Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

    IMG_9119
    IMG_9121
    IMG_9123
    IMG_9127

    Machine cutter

    It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

    Material of blades: Cr12, quenching treatment

    C purlin Roll forming machine 1

    Feeding table

    Insert raw material (steel plate) through the beach to manufacture and process

    It can guarantee coil go straight and the out products neat, parallel

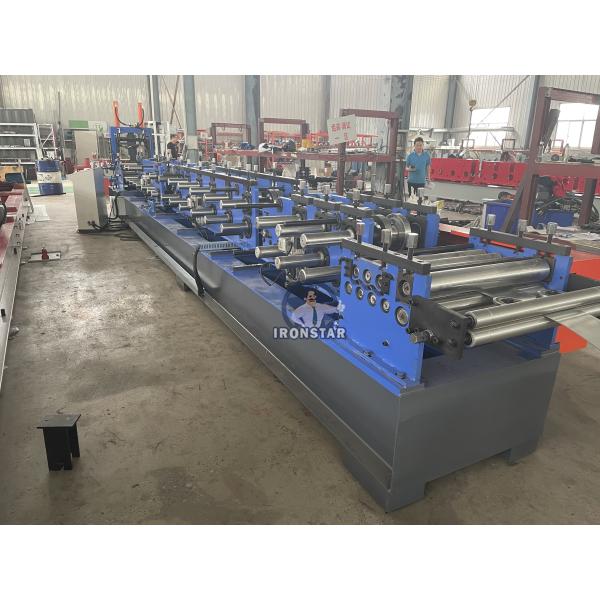

    IMG_4899

    Control box

     control box

    DETAL PLC control system

    Target piece`s length is adjustable and digit

    Two modes operate: automatic and manual type

    Button press and screen touch operate, easy operate

    Language: Chinese and English or as acustomer' need

    Hydraulic oil pump

    IMG_4887-5 (2)

    Hydraulic oil into the hydraulic oil tank

    Pump motor drives the cutter work

    Motor Power: 5.5 KW

    Hydraulic oil: 46# Oil

    add capacity: oil add 3/4 of box capacity

    Oil pressure: 8-10 MPa

    Receiving table

    IMG_7437-

    Length: Common 2-3 m

    Operate : Manual work

    Used to collect the finished pieces

    Support roller to transmit pieces

    Easy for panel take away by forklifts

    Spare parts free for customer

    QQ截图20211229161100

    Packing & Payment & Service

    1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

    2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

    3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 60 working days after receipt of deposit from the buyer.

    4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

    5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

    6). Package: One complete equipment needs a 40 feet container to hold.

    Certificate CE & ISO9001

    QQ截图20211229161629

    We sell country
